Adsorption Testing

Revolutionary adsorbent screening services

Contact

Revolutionary adsorbent screening services with multi-column solutions based on years of experience in high-throughput testing. The contract research and validation are done by our experienced scientific team for the highest data quality.

Accelerate your adsorbent discovery

High-throughput dynamic flowthrough testing is a powerful tool for developing, evaluating or screening adsorbents to capture adsorbates from various sources. The evaluation and screening may involve selectivity and capacity studies, determining breakthrough curves and the construction of multicomponent adsorption isotherms. The breakthrough curves contain kinetic information determined under ideal hydrodynamic conditions.

Due to the small column size, relevant desorption and regeneration test data can be obtained quickly and with only small amounts of sample. This is especially relevant when testing newly developed adsorbents, often only available in small quantities, or when screening many different conditions.

See technical specifications of our services:

Atmospheric Air & Gas Purification Pressurized Gas Purification and Separation Liquid Purification and Separation Volatile Liquid Purification and Separation

Fast and accurate adsorbent high-throughput testing services

The systems are running fully automated using the flexible Flowrence software, allowing cyclic operation and fast data acquisition.

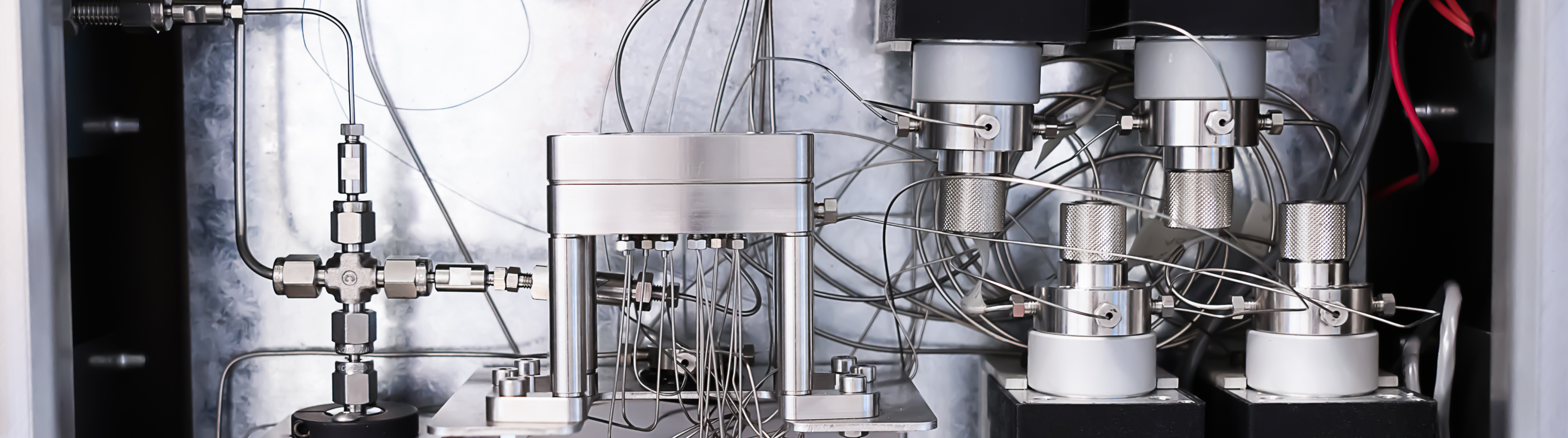

Avantium’s Flowrence Technology® enables the capability of running up to 64 experiments simultaneously using its patented micro fluid chip to achieve a high accuracy fluid distribution to the flow through reactor.

The microfluidic distribution chip technology offers the highest accuracy in flow distribution with a standard deviation of 0.5% or better between columns. The use of temperature controlled column cabinets assure accurate temperature control during the experiments.

Multiple feeds can be introduced and mixed in situ or by using a premixed fluid. The fluid flow delivery is continuous and free of pulses with minimum dead volumes.

Process conditions
Respiratory Protection and Air Purification
Gas Phase
Liquid Phase
Application Purification Purification and Separation Purification and Separation
Pressure range Atmospheric <1 – 50 bar 1- 80 bar
Temperature range 10 – 65 °C 10 – 250 °C 25 -200 °C
Relative humidity 0 – 95% at 10-65°C 0 – 95% at 30°C n.a.
In situ drying / regeneration Yes Yes Yes
Inlet Concentration range 5 ppm – 5000 ppm 0 – 100% ppm – 100%
Space velocity (HSV) 500 – 20000 hr-1 120 – 20000 hr-1 0.3 – 10 hr-1
Adsorption – Desorption Single & Multi cycle Single & Multi cycle Single & Multi cycle
Desorption Thermal, Vacuum, Steam Thermal, Vacuum, Steam Purge fluid
Column bed height up to 20 cm up to 20 cm up to 50 cm
Analytics (example given) MS, FTIR, sensor MS, FTIR, sensor Conductivity, GC, HPLC

Advantages

  • Multicomponent feed stocks can be used, either premixed or prepared in the unit.
  • When mimicking actual process conditions humidification of the feed gas is often needed. The relative humidity can be set and controlled between 0 and 95% RH at a range of temperatures.
  • Adsorbent samples can be dried or pretreated in situ.
  • Repeated cyclic operation capability allows adsorption and desorption studies to determine working capacities and ageing of adsorbents under chosen process conditions.
  • The use of the microfluidic distribution chip technology also enables testing powders next to pellets in a flowthrough setup.
  • The system set-up can be equipped with dedicated sensors and integrated online analytics with automated data acquisition.

Potential applications

Carbon Capture

VOC Removal

Hydrogen Purification

Syngas Purification and Separation

Purification of Pyrolysis Oil

PFAS Removal

MEG separation

Olefins and Aromatic Isomer Separation
